Product Details

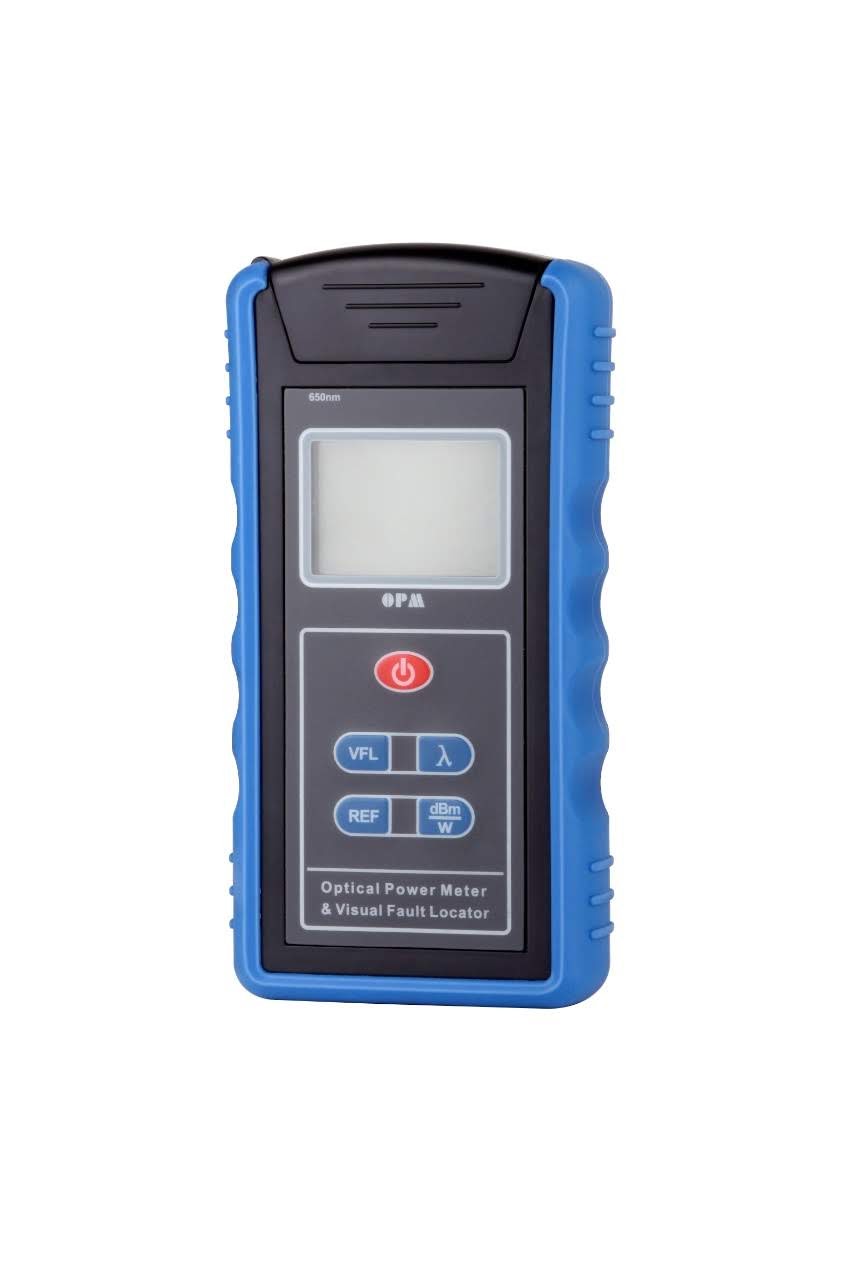

The UNIWAY UW-201 with Built-in VFL (OPM) is a compact, high-performance testing tool designed for accurate measurement of optical power in fiber optic networks. Equipped with a built-in Visual Fault Locator (VFL), it combines precise power measurement with quick fault detection, making it an essential tool for telecom engineers, FTTH installers, and network maintenance professionals.
With a wide measurement range of -70 dBm to +10 dBm and support for multiple calibrated wavelengths (850, 1300, 1310, 1490, 1550, 1625 nm), the AT-201 ensures stable and accurate readings across single-mode and multi-mode fibers. Its InGaAs detector provides high sensitivity, while the durable design ensures reliable performance even in demanding field conditions.
✅ Key Features:
-
Wide measurement range: -70 ~ +10 dBm
-
Wavelength range: 800 ~ 1650 nm
-
Calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1625 nm
-
Detector type: InGaAs for high precision
-
Accuracy: < ±3% (-10 dBm, 22°C)
-
Built-in 650 nm, 10 mW Visual Fault Locator (VFL) for fast fiber fault detection
-
Long working hours: 120+ hours with AA batteries
-
Compact, lightweight design (210 g) with universal 2.5 mm ferrule connector
-
Ideal for FTTH, CATV, telecom, and data center applications
