Uniway Optimux/ FXO FXS

Uniway Optimux/ FXO FXS

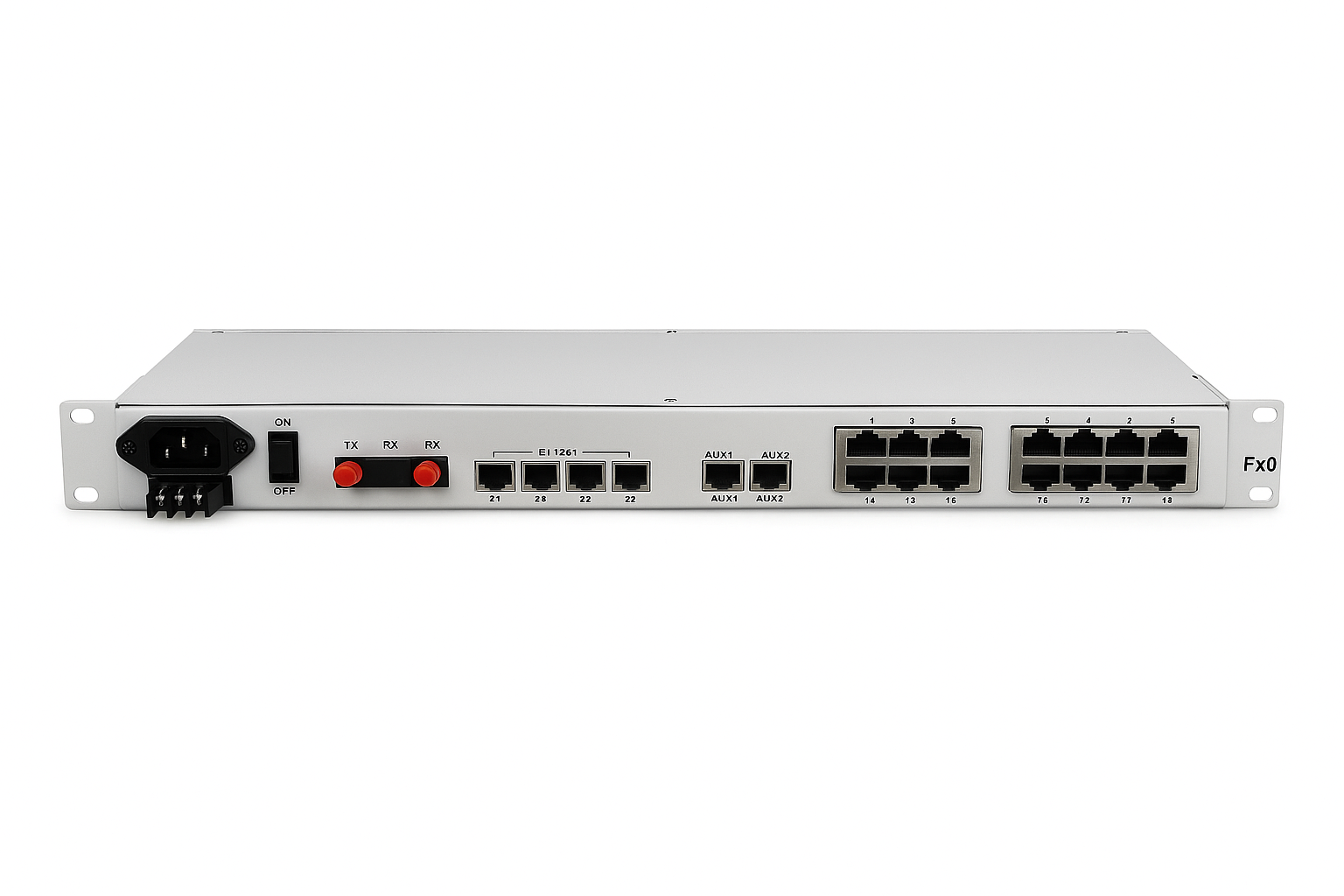

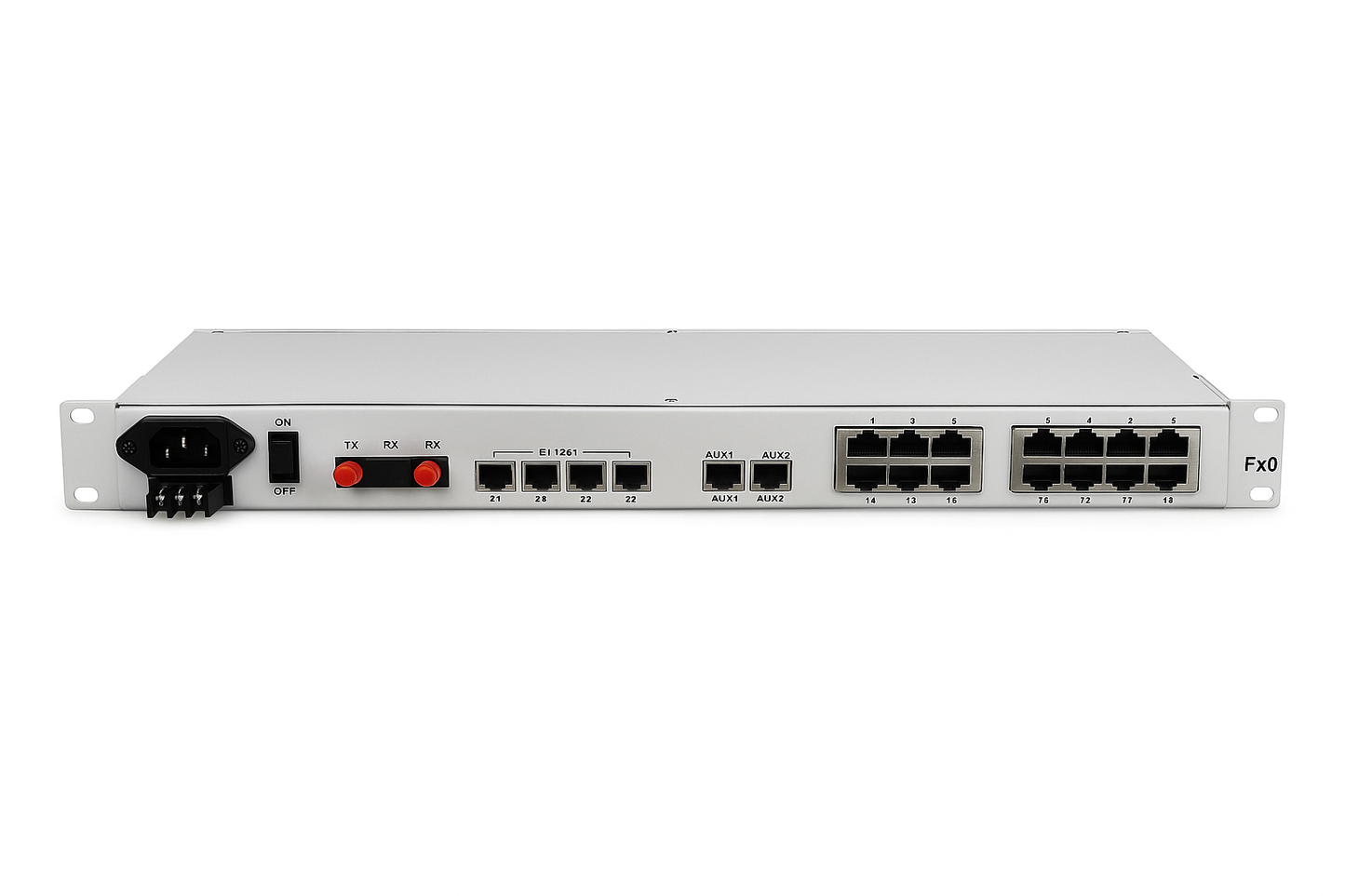

The UNIWAY Optimux/ FXO FXS is a versatile fiber optical multiplexer.

Features

The UNIWAY Optimux/ FXO FXS is a versatile fiber optical multiplexer that integrates voice, data, and Ethernet transmission into a single compact 1U rackmount unit. It is designed for telecom carriers, ISPs, enterprises, and power utilities that require seamless multi-service transmission over fiber.

✅ Key Features:

  • Interfaces:

    • 8 E1 interfaces (G.703 compliant)

    • 8 Voice channels (FXO/FXS, Caller ID, polarity billing supported)

    • 4 Fast Ethernet (10/100M, VLAN supported, Auto-MDIX)

    • 4 Expansion ports for RS232/RS485/RS422, voice, audio, or switch signals
  • Performance:

    • Transmission distance up to 120 km over single-mode fiber

    • Supports multi-mode and single-mode fiber options

    • Low latency, high reliability with smooth digital clock recovery

    • Lightning protection up to 6KV (IEC61000-4-5)
  • Design & Power:

    • Compact 1U 19-inch rackmount (485 × 138 × 45 mm, 2.4 kg)

    • Power options: AC 220V, DC -48V, or DC 24V

    • Low power consumption (≤10W)
  • Applications:

    • Telecom backhaul and enterprise private networks

    • Power transmission and railway communication

    • Voice + Data + Ethernet integration over a single optical fiber

With its high flexibility, long-distance capability, and reliable design, the UNIWAY provides an ideal solution for converged communication networks.

View full details

Enquire About This Product

Product Details

The UNIWAY Optimux/ FXO FXS is a versatile fiber optical multiplexer that integrates voice, data, and Ethernet transmission into a single compact 1U rackmount unit. It is designed for telecom carriers, ISPs, enterprises, and power utilities that require seamless multi-service transmission over fiber.

✅ Key Features:

  • Interfaces:
    • 8 E1 interfaces (G.703 compliant)
    • 8 Voice channels (FXO/FXS, Caller ID, polarity billing supported)
    • 4 Fast Ethernet (10/100M, VLAN supported, Auto-MDIX)
    • 4 Expansion ports for RS232/RS485/RS422, voice, audio, or switch signals

  • Performance:
    • Transmission distance up to 120 km over single-mode fiber
    • Supports multi-mode and single-mode fiber options
    • Low latency, high reliability with smooth digital clock recovery
    • Lightning protection up to 6KV (IEC61000-4-5)

  • Design & Power:
    • Compact 1U 19-inch rackmount (485 × 138 × 45 mm, 2.4 kg)
    • Power options: AC 220V, DC -48V, or DC 24V
    • Low power consumption (≤10W)

  • Applications:
    • Telecom backhaul and enterprise private networks
    • Power transmission and railway communication
    • Voice + Data + Ethernet integration over a single optical fiber

With its high flexibility, long-distance capability, and reliable design, the UNIWAY OPTIMUX/ FXO FXS provides an ideal solution for converged communication networks.
