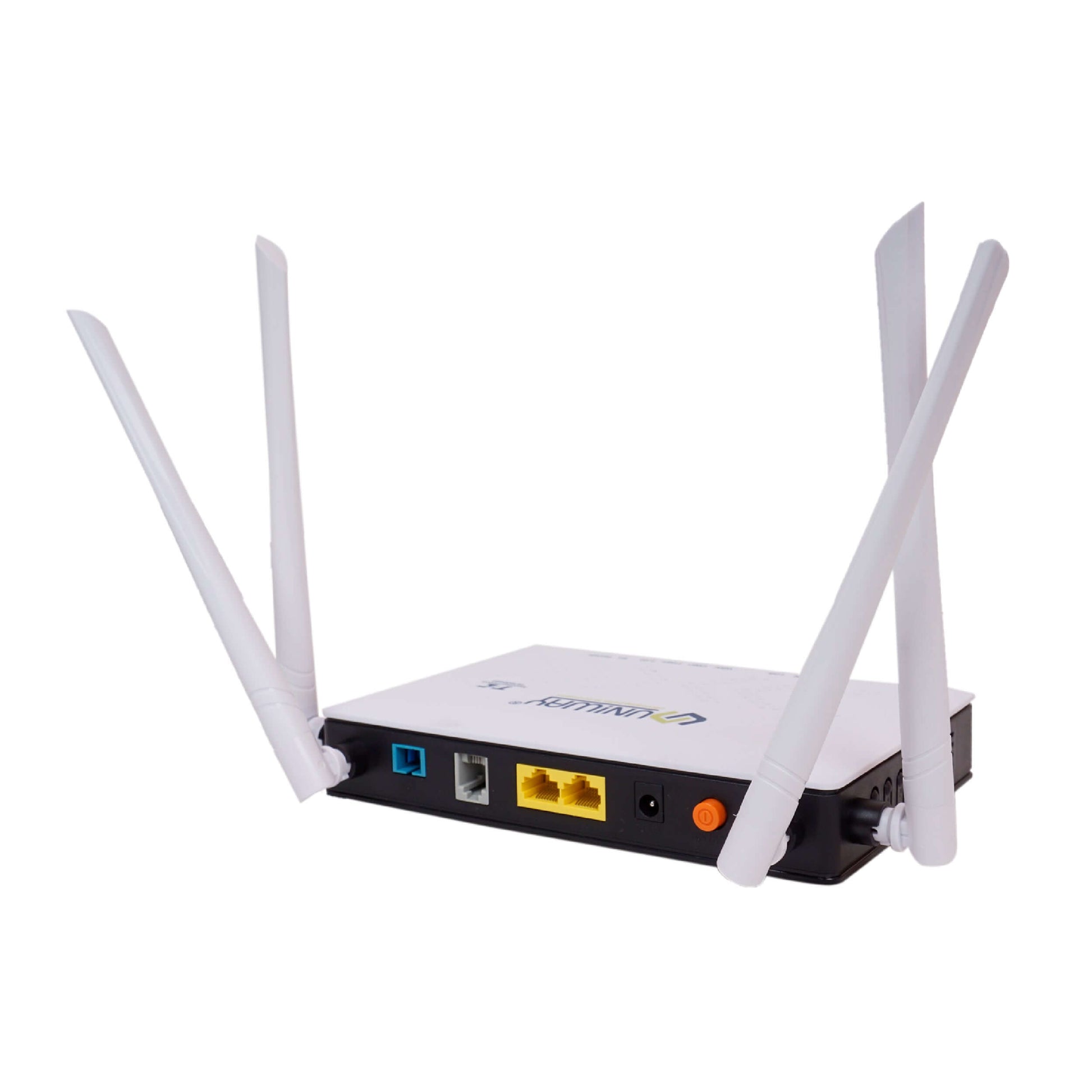

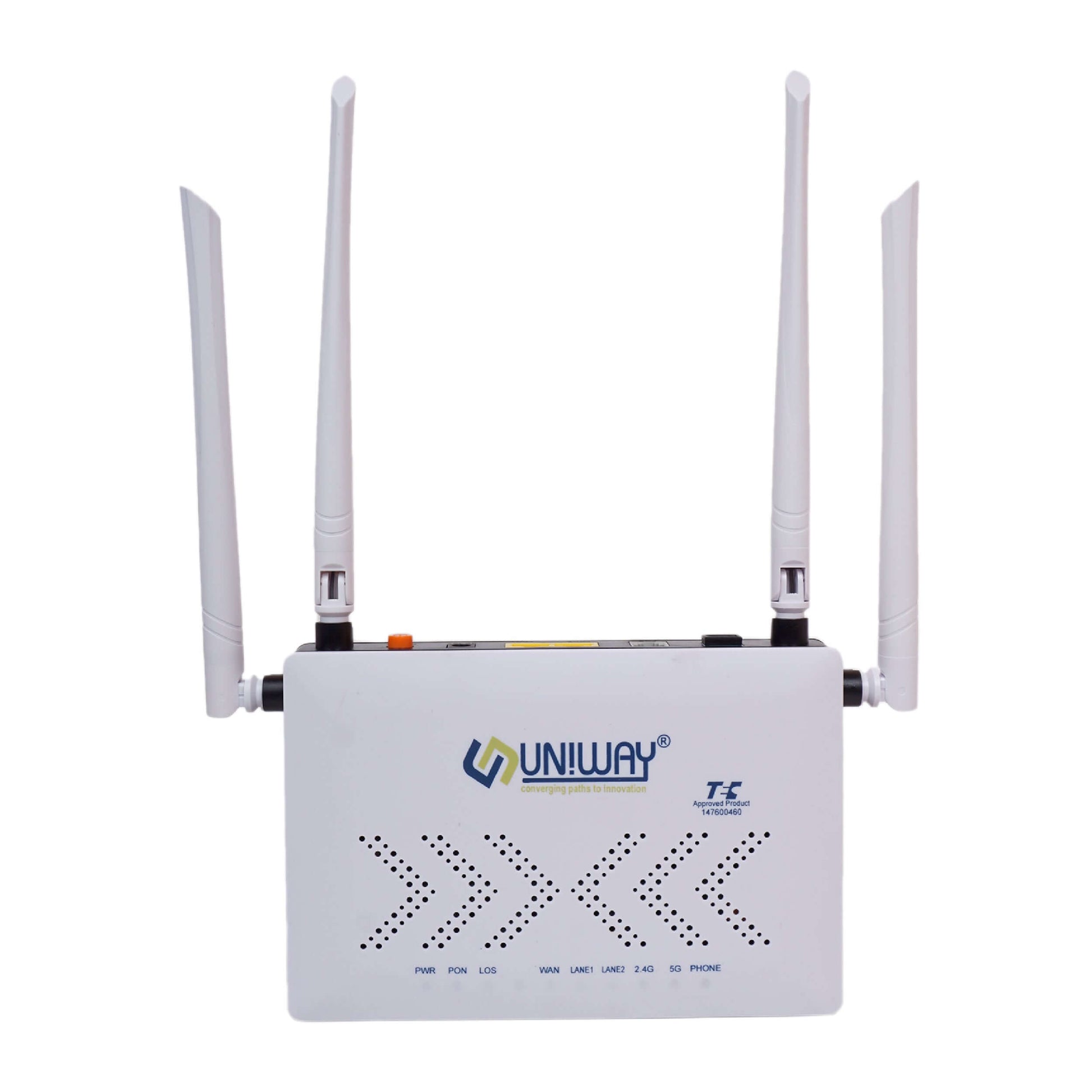

Uniway UW-323 DAC

Uniway UW-323 DAC

UW323DAC Subscriber End Equipment Unit terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high quality VoIP as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of XPON Equipment (V2.0 and above version).

Features

► SUPPORT FULL MANAGEMENT OF HGU FUNCTIONS BY UNIWAY OLT
► PLUG AND PLAY, FEATURES AUTO-DETECTING, AUTOˇCONFIGURATION, AND AUTO
FIRMWARE UPGRADE , ETC
► INTEGRATED OAM/OMCI REMOTE CONFIGURATION AND MAINTENANCE FUNCTI
► SUPPORT RICH QINQ VLAN FUNCTIONS AND IGMP SNOOPING MULTICAST FEATURES
► FULLY COMPATIBILITY WITH OLT BASED ON BROADCOM/PMC/CORTINA CHIPSET
► SUPPORT 802.11N/AC WIFI(4T4R) FUNCTION
► SUPPORT NAT, FIREWALL FUNCTION
► SUPPORT IPV4 AND IPV6 DUAL STACK
► SUPPORT SIP PROTOCOL
► INTEGRATED LINE TESTING COMPLIANT WITH GR-909 ON POTS

View full details

Enquire About This Product

Product Details

Introducing the Uniway UW-323 DAC, a multifunctional powerhouse that redefines home and business networking experiences. This advanced device combines seamless data, WiFi, POTS (Plain Old Telephone Service), CATV (Cable Television), and PoE (Power over Ethernet) services, offering unparalleled connectivity solutions in one compact unit.

Management Mode: Elevate your network management with flexible options including OAM/OMCI, Telnet, WEB, and TR069. Take full control of Home Gateway Unit (HGU) functions effortlessly, thanks to compatibility with UNIWAY OLT.

Data Service Functions: Experience lightning-fast data transmission with non-blocking switching and a robust 2K MAC address table. Customize your network with 64 VLAN IDs, supporting various VLAN configurations like QinQ, VLAN trunking, and more. Integrated port monitoring, mirroring, rate limiting, and SLA ensure a tailored network experience.

WiFi Service Functions: Enjoy seamless wireless connectivity with integrated 802.11b/g/n/ac technology, accommodating up to 128 users. Benefit from secure authentication protocols, including WEP, WAP-PSK (TKIP), and WAP2-PSK (AES). The device supports multiple modulation and encoding schemes, ensuring optimal wireless performance.

POTS Service Function: Stay connected with SIP (IMS compatible) call protocol and wide-ranging voice coding options. Advanced features like echo cancellation, fax support, call forwarding, and multi-party conferencing enhance communication efficiency. The device supports various IP address assignment methods and value-added voice services.

CATV Service Functions: Monitor CATV work status and manage CATV services seamlessly, ensuring uninterrupted entertainment experiences.

PoE Service Functions: Power up your devices effortlessly with Positive PoE support. The device detects load automatically, ensuring efficient power supply to connected devices.

The Uniway UW-323 DAC offers an unmatched networking solution, supporting a myriad of services with top-notch efficiency. Whether you're looking
