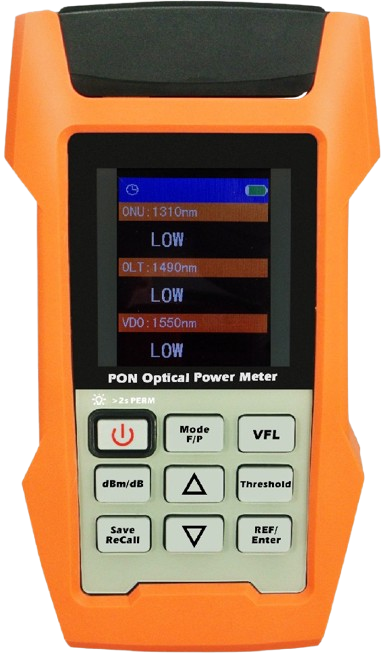

Uniway UW-501 PON Power Meter for FTTH Testing

Uniway UW-501 PON Power Meter for FTTH Testing

Uniway UW-501 PON Power Meter for accurate FTTH network testing. Supports 1310/1490/1550 nm, pass-through measurement, and fast PASS/FAIL results.

Features

Key Features:

  • Multi-Wavelength Measurement: Simultaneous testing of 1310 nm, 1490 nm, and 1550 nm wavelengths on a single screen.
  • Wide Measurement Range: Covers +10 to -35 dBm (1310 nm), +10 to -50 dBm (1490 nm), and +25 to -50 dBm (1550 nm).
  • Pass-Through Function: Enables online measurement without disrupting network traffic.
  • Fast PASS/FAIL Evaluation: Pre-set threshold function for quick and reliable network performance assessments.
  • Data Storage: Stores up to 1000 test records for efficient field reporting.

  • High Accuracy: ±0.2 dB typical accuracy, ensuring reliable and consistent testing results.
  • Durable Build: Compact, lightweight design (450 g) with rugged housing for field operations.
  • Long Battery Life: Operates for 36+ hours on 3 × AA batteries or AC/DC adapter.
  • Optional VFL Module: Versions available with 1 mW or 10 mW Visual Fault Locator for fiber break detection.
View full details

Enquire About This Product

Product Details

The Uniway UW-501 Fiber Optic Power Meter with PON Testing is a professional-grade optical testing device designed for FTTH (Fiber-to-the-Home) and PON (Passive Optical Network) installations. With advanced pass-through technology, multi-wavelength support, and a user-friendly design, it ensures accurate performance testing of optical signals in modern fiber networks.

Key Features:

  • Multi-Wavelength Measurement: Simultaneous testing of 1310 nm, 1490 nm, and 1550 nm wavelengths on a single screen.

  • Wide Measurement Range: Covers +10 to -35 dBm (1310 nm), +10 to -50 dBm (1490 nm), and +25 to -50 dBm (1550 nm).

  • Pass-Through Function: Enables online measurement without disrupting network traffic.

  • Fast PASS/FAIL Evaluation: Pre-set threshold function for quick and reliable network performance assessments.

  • Data Storage: Stores up to 1000 test records for efficient field reporting.

  • High Accuracy: ±0.2 dB typical accuracy, ensuring reliable and consistent testing results.

  • Durable Build: Compact, lightweight design (450 g) with rugged housing for field operations.

  • Long Battery Life: Operates for 36+ hours on 3 × AA batteries or AC/DC adapter.

  • Optional VFL Module: Versions available with 1 mW or 10 mW Visual Fault Locator for fiber break detection.
