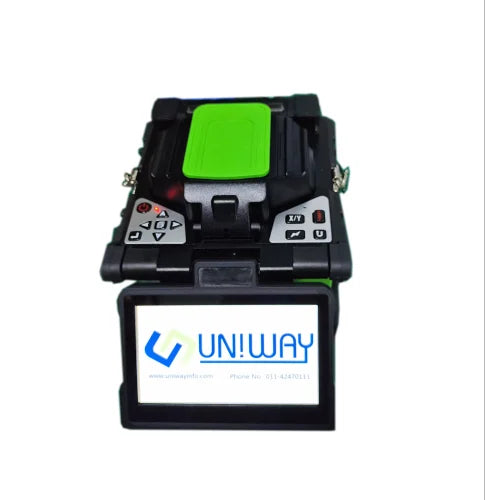

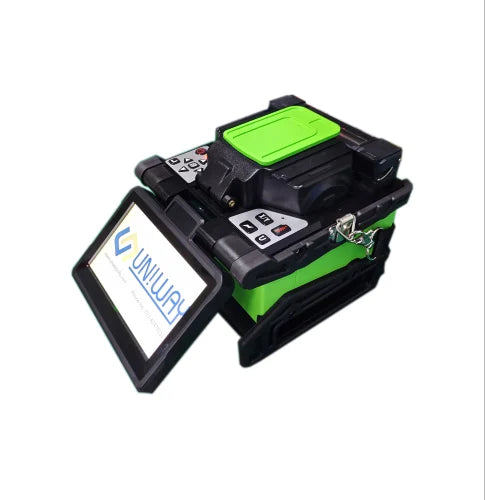

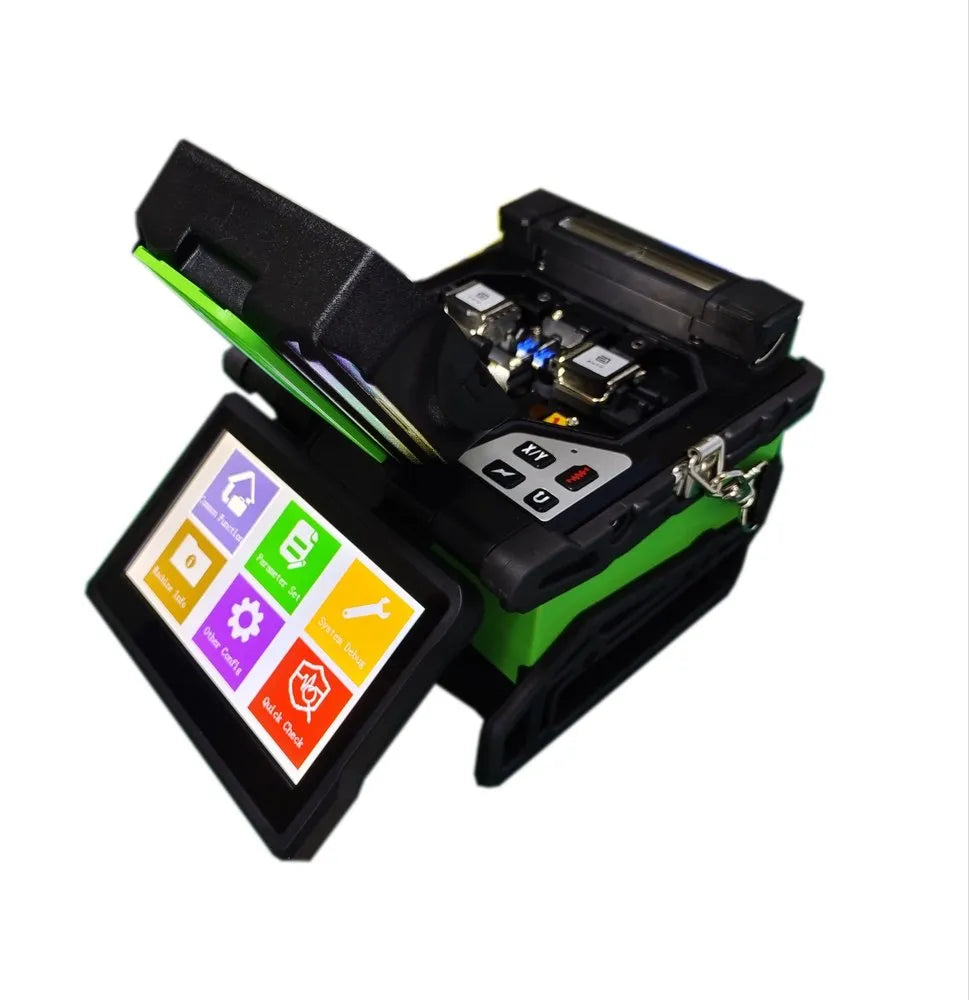

Introducing the Uniway UW-85H+: Your Gateway to Cutting-Edge Optical Fiber Fusion

Unlock the future of seamless optical fiber connectivity with the Uniway UW-85H+. With a rich legacy in research and development since 2010, we proudly present our latest innovation, the UW-85H+, setting new standards in fusion splicing technology. Our relentless pursuit of excellence has resulted in five patents for fusion slicer research, with two additional patents for groundbreaking technologies incorporated into this compact and efficient splicing marvel.

Unmatched Fusion Precision: The UW-85H+ excels in uniting optical fibers with unparalleled precision, ensuring that light passes through the spliced fibers without scattering or reflecting, maintaining optical integrity. The splice and its surroundings are nearly as robust as the virgin fiber itself.

Cutting-Edge Technology: Our commitment to innovation is evident through the incorporation of two new patents in the UW-85H+. This fusion splicer is the culmination of a decade of dedicated research and development.

Versatile Fiber Compatibility: The UW-85H+ supports a wide range of fiber types, including Single Mode (SM), Multi-Mode (MM), Non-Zero Dispersion Shifted (NZ-DS), Erbium-Doped Fiber (EDF), Pigtail, Cable (rubber-insulated wire), and offers optional compatibility with SC/LC/FC connectors.

Exceptional Performance Metrics:

• Average Splice Loss: An impressive 0.02dB (SM), 0.01dB (MM), 0.04dB (NZDS), 0.04dB (EDF).
• Return Loss: Achieving ≥60dB.
• Tension Test: Standard 2.0N (200gf).
• Swift Splicing: Achieve typical splicing times in just 7 seconds.
• Efficient Heating: Rapid and efficient heating in approximately 15 seconds.

User-Friendly Features:

• Splicing Program: Store up to 100 groups for effortless access.
• Protection Sleeve Compatibility: Choose from 20mm, 40mm, or 60mm sleeves.
• Intuitive Interface: Navigate seamlessly with an English-language interface.
• Broad Operating Conditions: Perform reliably in temperatures ranging from -10°C to +50°C, with humidity levels up to 95%, and at altitudes up to 5000m.
• Extended Electrode Life: Accomplish more than 6000 splices before electrode replacement.

Versatile Power Options:

• AC Adapter: Versatile input voltage (100~240V) and 12V, 5A output.
• Inner Lithium Battery: Empowered with a 12V, 6.4AH battery for up to 350 splices with heating.

High-Resolution Display: View your splicing projects in vivid detail on the 5-inch high-resolution, colorful LCD display, with an optional touch screen available.

Fiber Inspection: Examine fibers closely with separately adjustable 500 times magnification on the X or Y axes, or simultaneously at 320 times magnification.

Extensive Splice Result Storage: Save up to 10,000 groups of your latest splice results for comprehensive record-keeping.

Splicing Modes: Choose between Auto, Manual, and Full Auto modes to suit your specific needs.

Compact and Lightweight: The UW-85H+ is designed for portability, with dimensions of 145(W)*149(D)*154(H)mm and a weight of just 1.69kg.

Experience the future of fusion splicing with the Uniway UW-85H+: precision, innovation, and versatility come together to create a seamless optical fiber connection. Elevate your connectivity solutions with the fusion splicer that sets new benchmarks in the industry.
