UNIWAY UW-FIG8-012 Armoured Figure-8 ADSS Optical Fiber Cable

The UNIWAY UW-FIG8-012 is a high-performance armoured figure-8 ADSS optical fiber cable, designed for long-distance and interoffice communication in challenging environments such as strong current zones and power transmission systems.

Built with a suspension stranded rope, this cable offers high tensile strength and is ideal for large-span aerial installations, ensuring reduced installation time and cost. The integrated suspension wire allows for easy gripping, fastening, and pulling, making it highly reliable in field applications.

At UNIWAY, we manufacture single-mode and multi-mode cables with various designs as per the requirements, including FRP yarn cables, Armoured Cables, FTTH, Fig-8, and Aerial cables. Our state-of-the-art optical fiber manufacturing facility is equipped with the latest cutting-edge machinery, ensuring premium product quality and consistency. Backed by strong in-house R&D teams, we maintain product superiority at every level of the manufacturing value chain—delivering performance you can trust.

Key Features:

• Fiber Count: Available in 2 to 144 fibers

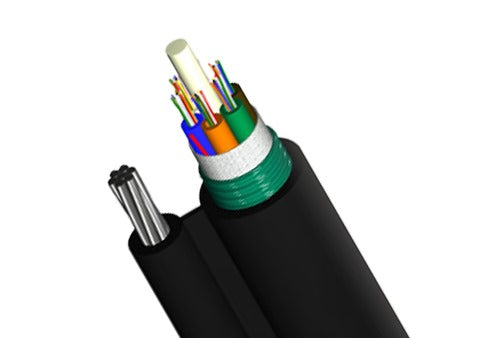

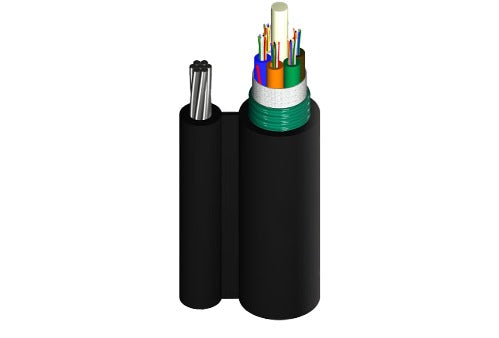

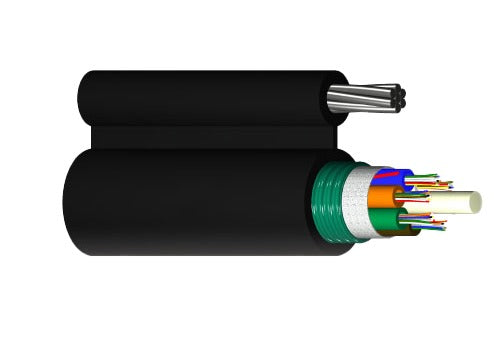

• Construction: Jelly-filled loose tubes, dielectric central strength member, aramid yarn reinforcement, corrugated steel tape armour, and PE outer jacket

• Durability: UV and moisture-resistant, suitable for aerial, duct, and direct burial installations

• Ease of Use: Tear-away messenger for grounding, ripcord for quick jacket removal, and compatibility with existing Figure-8 hardware

•
  Performance: Low attenuation (0.35 dB/km @1310nm, 0.21 dB/km @1550nm), high crush resistance, and wide operating temperature range (-30°C to +70°C)


This cable ensures low dispersion, high mechanical strength, and superior fiber protection, making it a perfect choice for telecom operators, ISPs, and enterprise networks.
